| Hardware features |
|
| Chipset | MT7981BA+MT7976CN+MT7531AE |
| Flash/RAM | 128MB /256MB |
| Protocol standard | IEEE 802.11b, IEEE 802.11g, IEEE 802.11a, IEEE 802.11n, IEEE 802.11ac, |
| IEEE 802.11ax, IEEE 802.3, IEEE 802.3u, IEEE 802.3x |

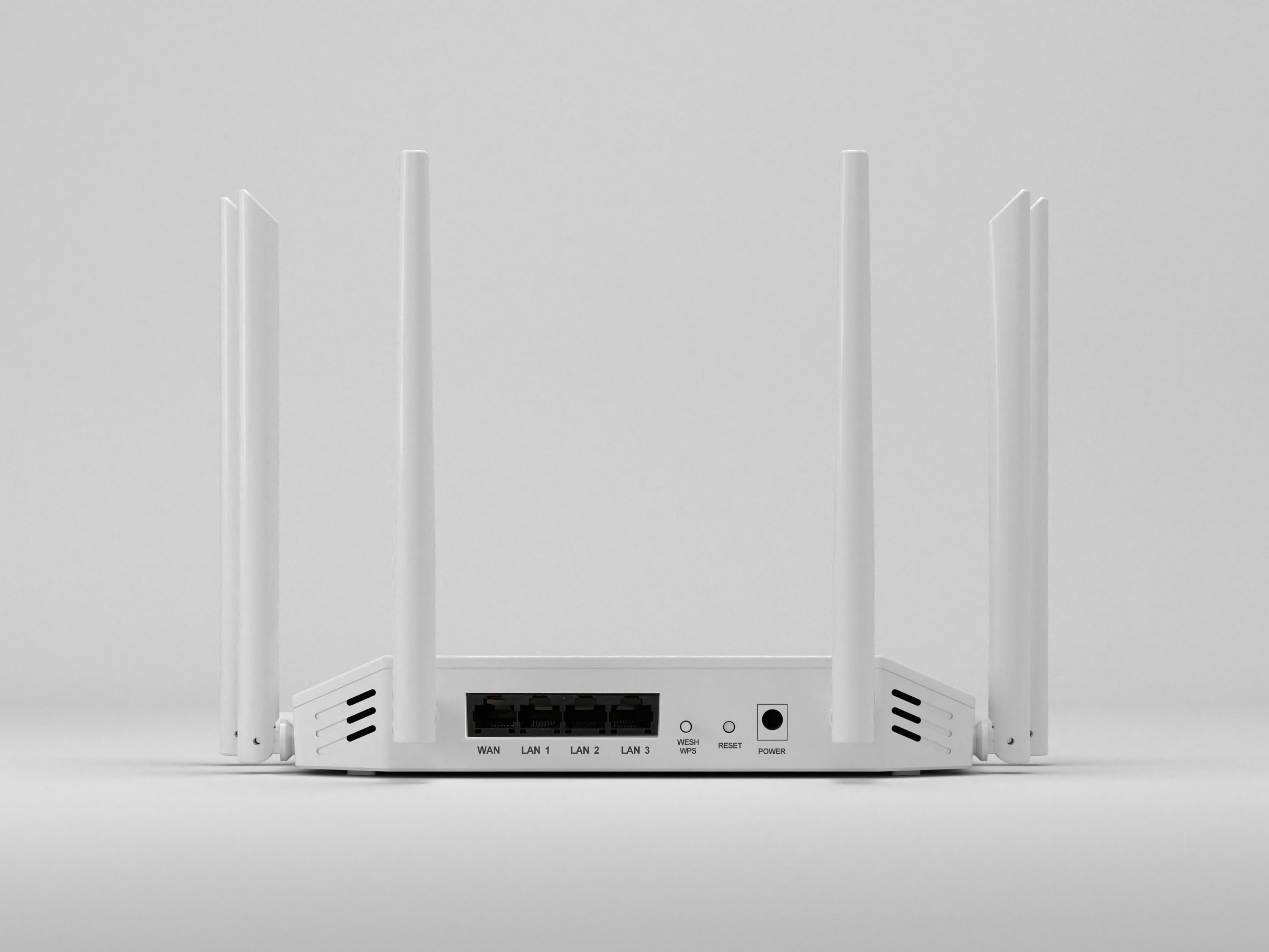

| Interface | 1* Gigabit WAN port |
| 3* Gigabit LAN ports |
| Button | MESH (press for 1 second) |
| Reset (press and hold for 5 seconds) |
| LED | Three-color design: Green, Red, Blue |

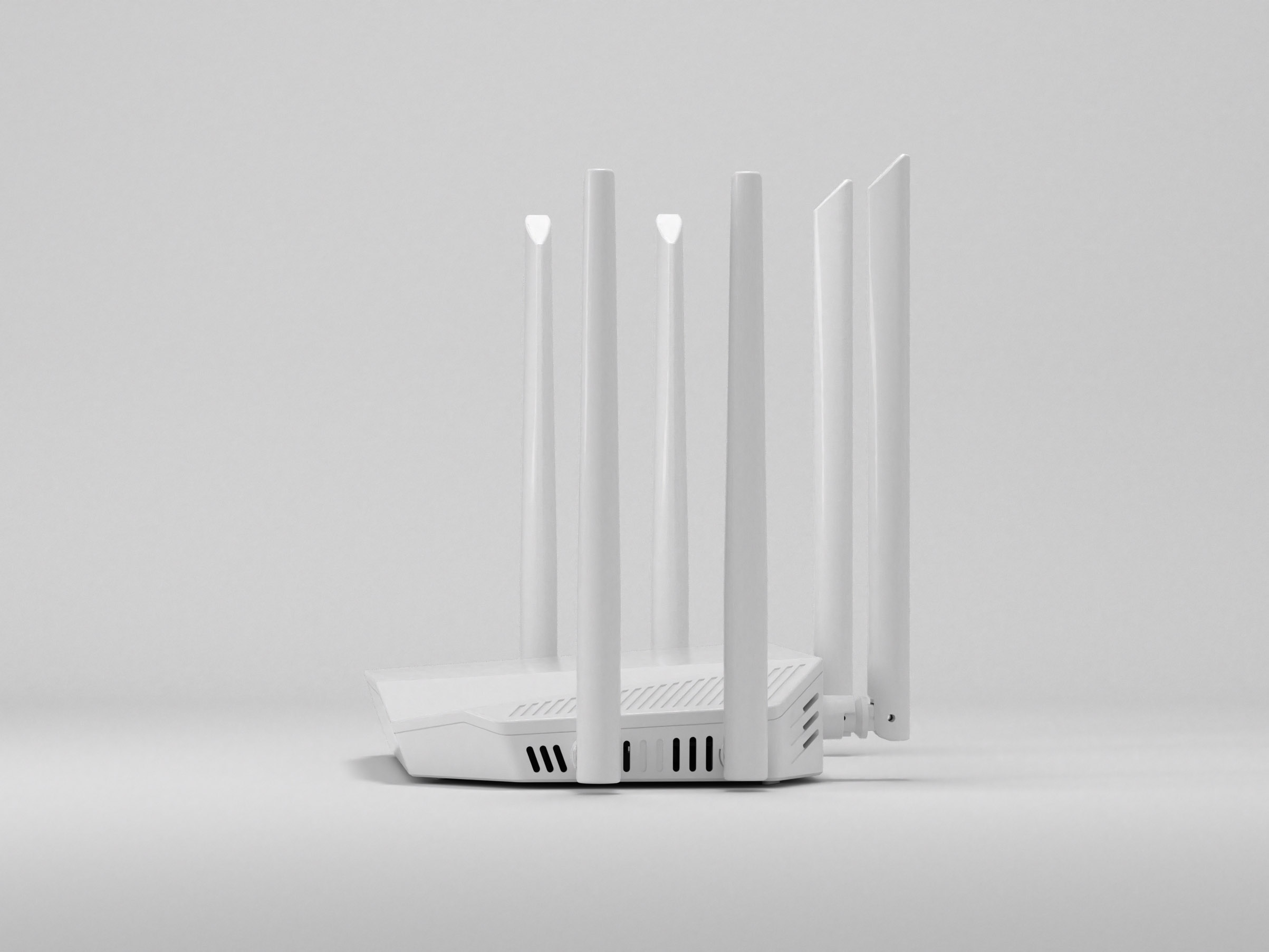

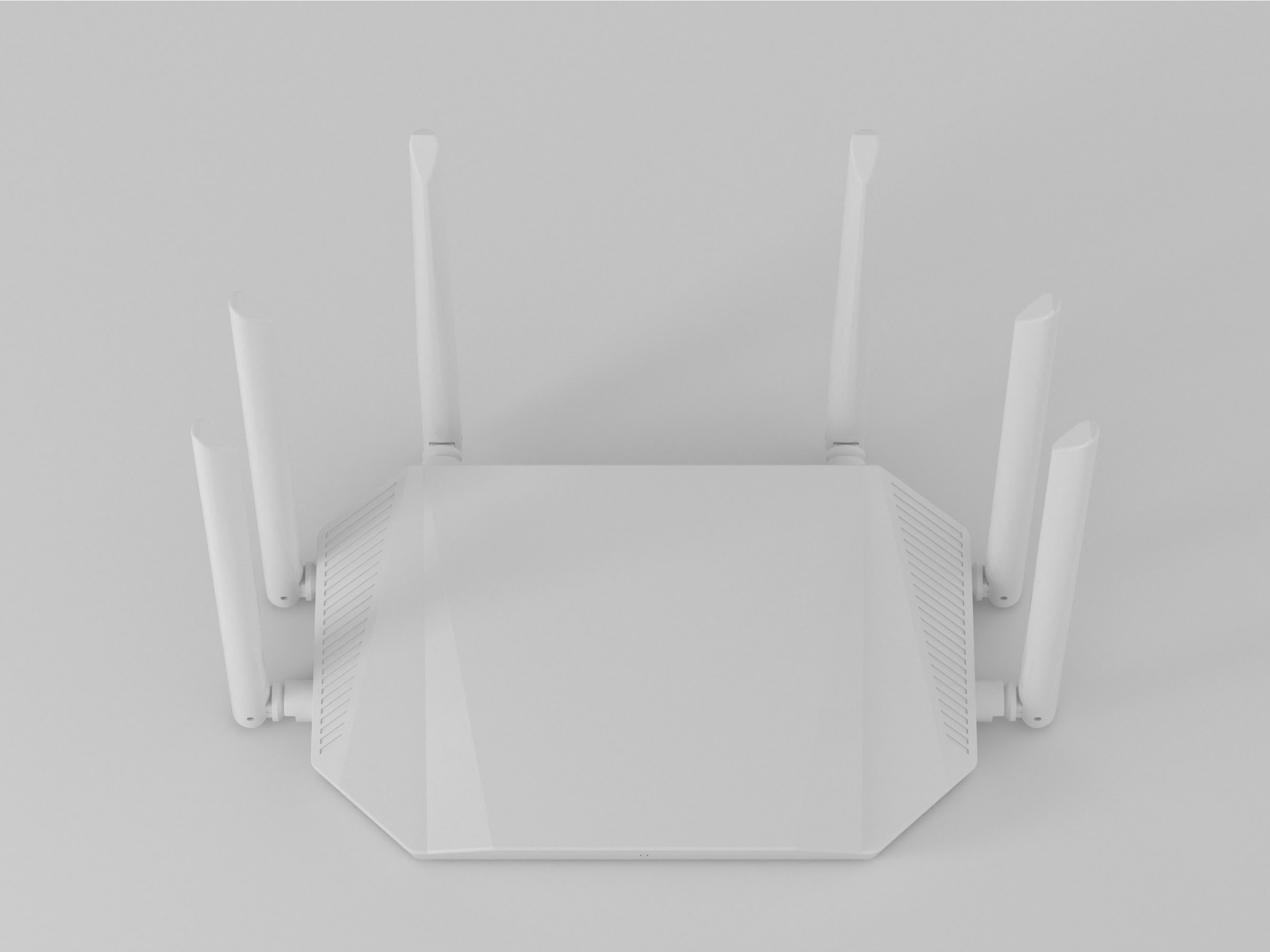

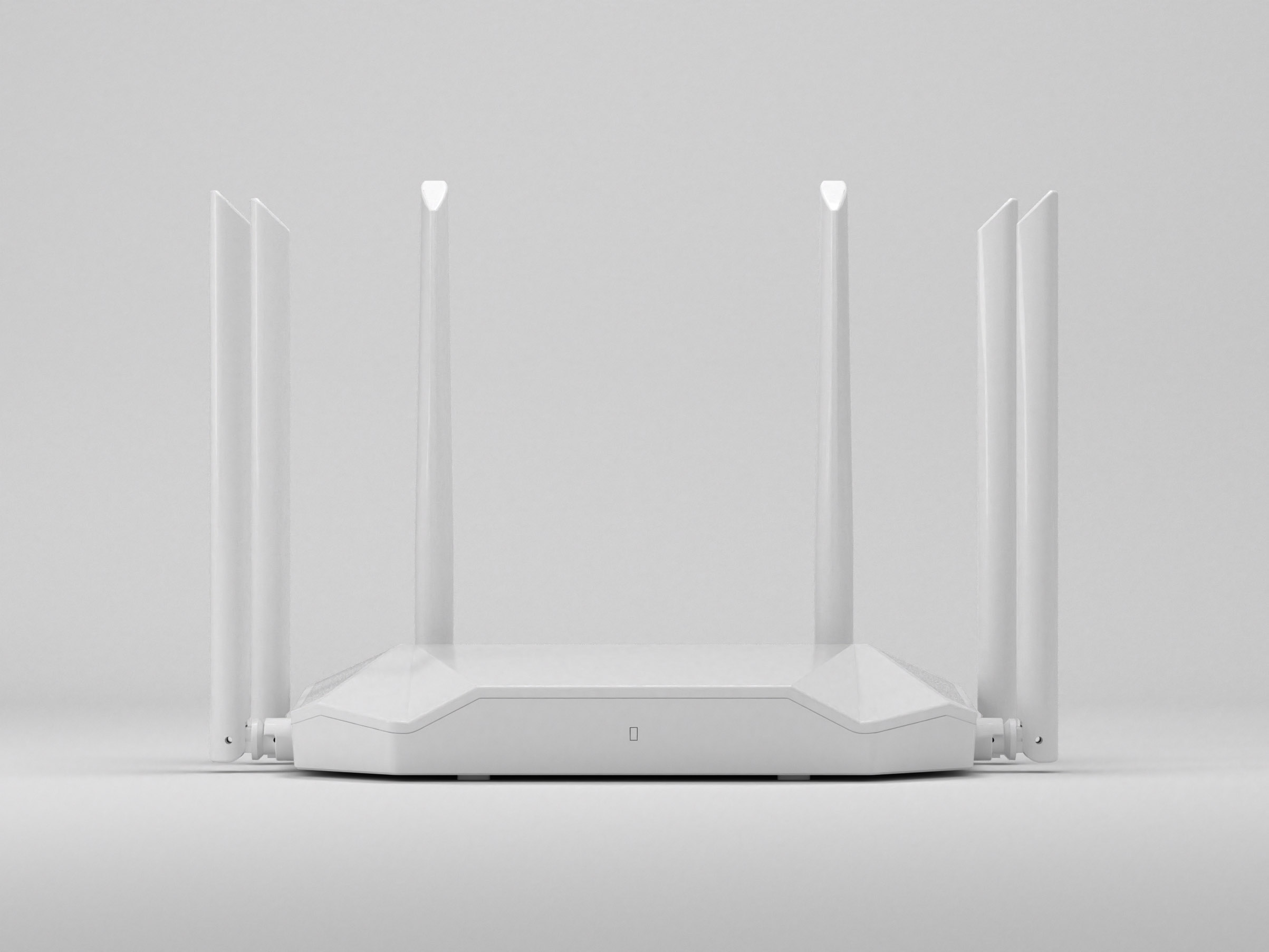

| Antenna | 3*5dBi external 5GHz antennas + 2*5dBi external 2.4GHz antennas + 1* decorative antenna |
| Number of antennas | 6 |
| Power Supply | DC 12V/1A |
| Wireless Features |
|
| Basic Skills | Wireless enable / disable |
| SSID broadcast enable / disable |
| Channel selection: 1 ~ 13 (2.4G) |
| 36 ~ 48, 52~64, 149 ~ 165 (5GHz) |
| 2.4G bandwidth: 20MHz, 40MHz |
| 5G bandwidth: 20MHz, 40MHz ,80MHz,160MHz |
| 2.4G frequency | 2412 ~ 2472MHz |
| 5G frequency | 5180~5240MHz, 5250~5350MHz, 5745MHz~5825MHz |
| Wireless Transfer speed | 2.4G 2TR up to 574 Mbps |
| 5G 2T2R up to 2402 Mbps |
| Power | 2.4G actual power: |
| 802.11b 2 2 ±1.5dBm |
| 802.11g 21±1.5dBm |
| 802.11n20 19±1.5dBm |
| 802.11n40 19±1.5dBm |
| 802.11ac40 17.5±1.5dBm |
| 802.11ax40 17.5±1.5dBm |
| 5G actual power: |
| 802.11a 19±1.5dBm |
| 802.11n20 18.5±1.5dBm |
| 802.11n40 18.5±1.5dBm |
| 802.11ac80 17.5±1.5dBm |
| 802.11ax80 16.5±1.5dBm |
| 802.11ax160 16.5±1.5dBm |
| Operating Mode | AP |
| Router |
| Repeater |
| Wireless Security | Wireless MAC address filtering |
| WPA-PSK, WPA2-PSK, WPA3 -SAE, WPA/WPA2 -PSK, WP A2- PSK/ WPA3 - SAE |
| WPS (PBC) |
| Other Features | Wireless host status display |
| Wireless site scan |
| Seamless roaming between nodes |
| Seamless roaming between frequency bands |
| Wi- Fi Settings | Wi-Fi basic settings (dual frequency integration, switch, wireless mode, SSID, PWD, encryption algorithm, channel, bandwidth, power adjustment) |
| Advanced Settings (Wireless Client Isolation, 802.11h, WMM Multimedia Acceleration) |
| Multi- SSID (SSID, encryption method, PWD, encryption algorithm) |
| Mesh properties | mesh switch, role selection, networking mode, mesh-top |
| Software features |
|
| Network settings | Support WAN port connection type: PPPOE, dynamic IP, static IP |
| MAC address clone, I PV6 settings, Radvd settings, IPTV settings, I GMP settings |
| LAN settings | DHCP server settings |
| Manage IP settings |
| Virtual server | Firewall Settings, Port Forwarding, UPnP, DMZ |
| Advanced settings | Traffic statistics, D DNS settings, QoS settings, VPN settings, anti-rubbing network |
| System Management | System status, time setting, password management, configuration management, firmware upgrade, scheduled restart, system log |
| System Tools | Traffic Statistics |
| System log |
| time zone setting |
| Local WEB management control configuration |
| File import and export |
| Web software upgrade |
| Others |
|
| Dimensions | 226 * 133 * 50mm |
Operating Environment
| Operating Temperature: 0~40 degree centigrade |
| Storage Temperature: -40~70 degree centigrade |
| Working humidity: 10% to 90%RH non-condensing |
| Storage humidity: 5% to 90%RH non-condensing |
