| Hardware features |
| Protocol standard | IEEE 802.11b , IEEE 802.11g , IEEE 802.11a , IEEE 802.11n , IEEE 802.11ac, |
| IEEE 802.11a x, IEEE 802.3, IEEE 802.3u, IEEE 802.3x |

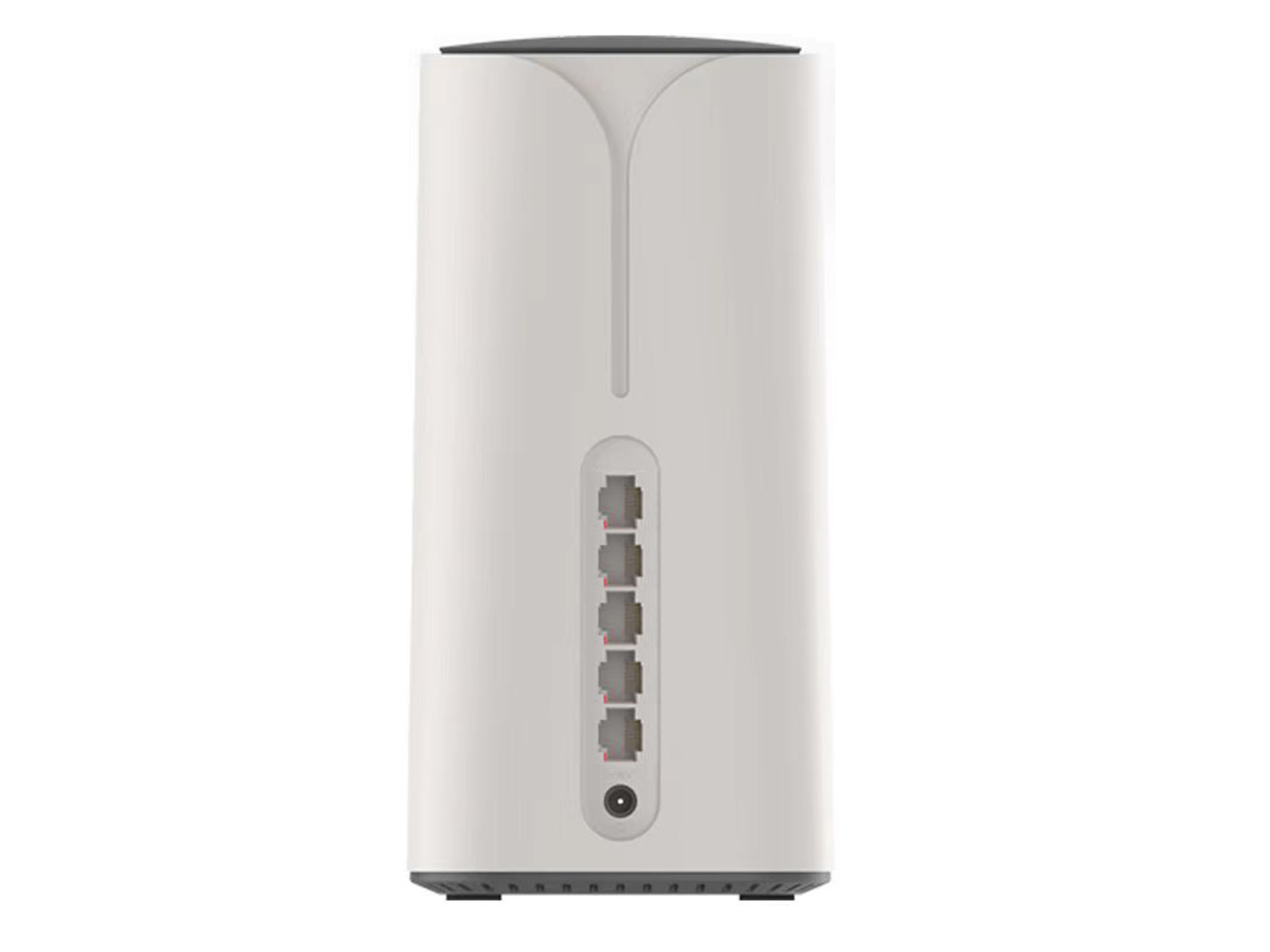

| Interface | 1* 10M/100M/1000M/2500M(optional) WAN port, support for Auto MDI / MDIX |
| 2* 10M/ 100M / 1000M LAN ports that support Auto MDI / MDIX |
| Button | 1* USB3.0 interface (optional) |
| MESH (press for 1 second) |
| Reset (long press for 5 seconds) |

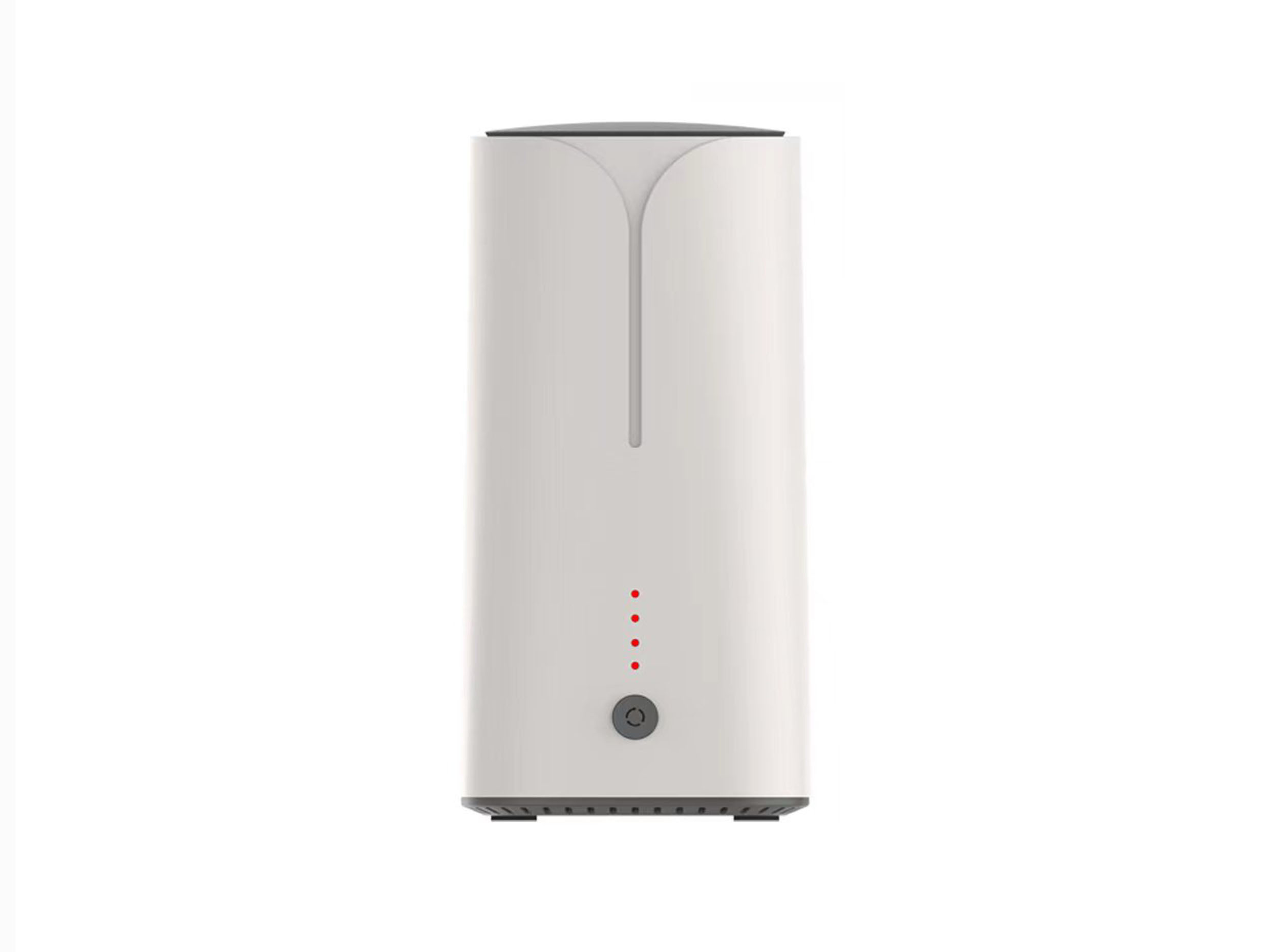

| LED | Three-color light design: green, red, blue |
| Antenna | Built-in omnidirectional 5 dBi non-removable antenna |
| Quantity of antenna | 5 |
| Power Supply | DC 12V/1A |
| Wireless features |
| Basic function | Wireless enabled / off |
| SSID, broadcast enabled / off |
| Channel selection: 1 ~ 13 (2.4G) |
| 36 ~ 48 + 52~64+149 ~ 165 (5GHz) |
| 2.4G Bandwidth: 20 MHz, 40 MHz |
| 5G Bandwidth: 20 MHz, 40 MHz, 80 MHz, and 160 MHz |
| 2.4G frequency | 2412~2472 MHz |
| 5G frequency | 5180~5240 MHz , 5250~5350 MHz, 5745 MHz~5825 MHz |
| Wireless speed | 2.4G 2T2R up to 574Mbps |
| 5G 2T3R up to 2402Mbps |
| Power | 2.4GHz actual power: |
| 802.11b 22±1.5dBm |
| 802.11g 21±1.5dBm |
| 802.11n20 19±1.5dBm |
| 802.11n40 19±1.5dBm |
| 802.11ac40 17.5±1.5dBm |
| 802.11ax40 17.5±1.5dBm |
| 5GHz actual power: |
| 802.11a 19±1.5dBm |
| 802.11n20 18.5±1.5dBm |
| 802.11n40 18.5±1.5dBm |
| 802.11ac80 17.5±1.5dBm |
| 802.11ax80 16.5±1.5dBm |
| 802.11ax 160 16.5±1.5dBm |
| Operation Mode | A P |
| Router |
| Repeater |
| Wireless security | Wireless MAC address filtering |
| WPA-PSK, WPA2-PSK , W PA3-SAE , WPA/WPA2-PSK , W P A2-PSK/WPA3-SAE |
| WPS/PBC |
| Other features | Wireless host status display |
| Wireless site scanning |
| Seamless roaming between the nodes |
| Seamless roaming between the frequency bands |
| WiFi Basic Settings (dual-frequency all-in-one, switch, wireless mode, SSID, PWD, encryption algorithm, channel, bandwidth, power adjustment) |
| WiFi setup | Advanced settings (wireless client isolation, 802.11h, WMM multimedia acceleration) |
| Multi-S SID (S SID, encryption mode, PWD, encryption algorithm) |
| Mesh characteristic | Mesh switch, role selection, networking mode, mesh_top, factory package pre-configuration |
| Software features |
| Network settings | Support for WAN port connection type: PPPoE, dynamic IP, and static IP |
| MAC address clone, IPV 6, R advd, IPTV, IGMP setting |
| LAN Settings | DHCP server settings |
| Manage IP settings |
| Virtual server | Firewall settings, port forwarding, UPnP, and DMZ |
| Advanced setup | Traffic statistics, DDNS setting, QoS setting, VPN setting, anti-rub network |
| System management | System status, time setting, password management, configuration management, firmware upgrade, timing restart, system log |
| System tools | Traffic statistics |
| System log |
| Time zone setting |
| Local WEB management control configuration |
| File import and export |
| Web software upgrading |
| Others |

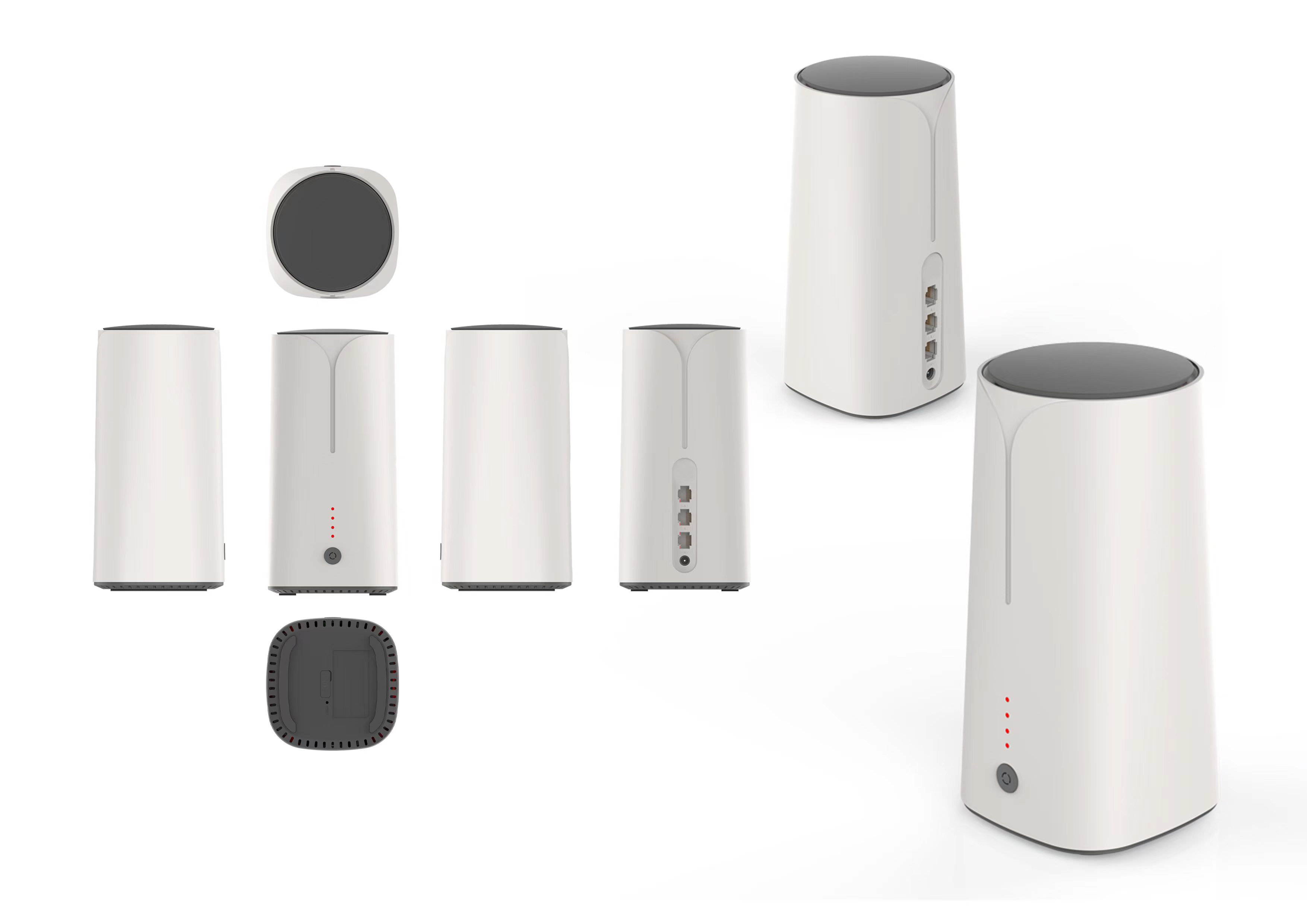

| Dimensions | 110 * 110 * 200 mm |
| Working environment | Operating temperature: : 0℃ to 40℃ |
| Storage temperature: : -40℃ to 70℃ |
| Working humidity: 10% to 90% RH non-condensing |
| Storage humidity: 5% to 90% RH non-condensing |
