| Technical Specifications |
| Physical |
| Dimensions | 170mm x 138mm x 55mm |
| Weight | < 450g |
| Power consumptions | < 10W |
| Power Supply | 12V DC /1.0A |
| Battery | 4000mAH@3.7V (14.8W) |
| Environmental |
| Operating Temperature | -15 to 55 degree centigrade |
| Storage Temperature | -40 to 85 degree centigrade |
| Humidity | 90% max non-condensing |
| Radio Interface |
| Radio Access | 3GPP Release 9 |
| Chipset | ASR CAT4 |
| Operation Mode | FDD & TDD, DL 150Mbps, UL 50Mbps |
| Frequency Band | LTE: B3/B28/B41; WCDMA: B1/B8 |
| MIMO & Modulation | DL 2x2 MIMO, QPSK/QAM16/QAM64 |
| Receive Sensitivity | Compliance with 3GPP standard |
| Output Power | 23dBm |
| Antenna | 3-5dBi (Built-in or External Stub Antenna) |
| WiFi Interface |
| Radio Access | IEEE802.11b/g/n/ac (DBDC) |
| MIMO | 2 x 2 |
| Output Power | 16dBm |
| Antenna | 3-5dBi |
| Connected Users | 32 |
| Security | 64/128-bit WEP, WPA/WPA2 |
| User Interface |

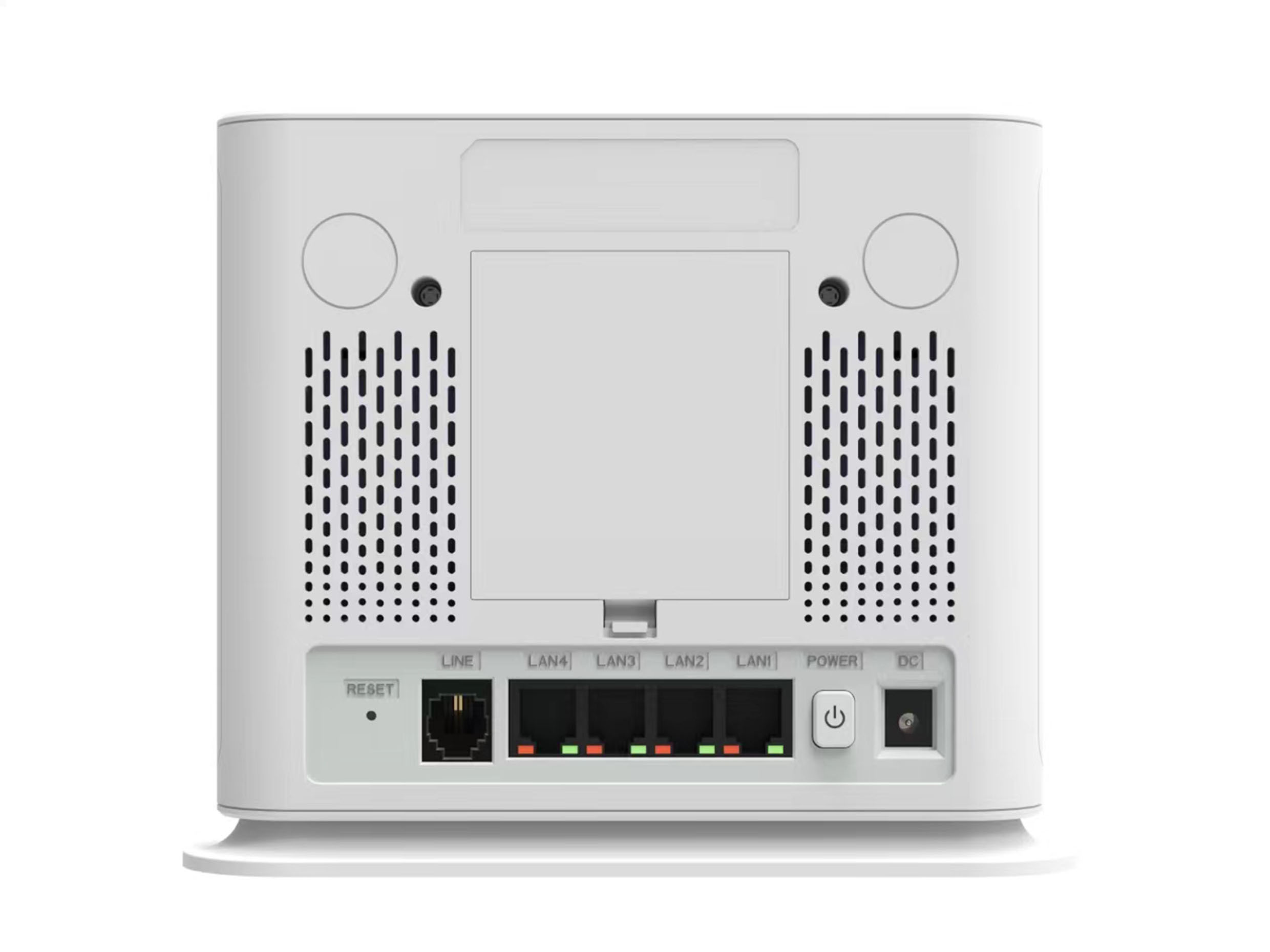

| Data Interface | 4 RJ45 10/100M ETH Port |
| Line Interface | 1 RJ11 Port |

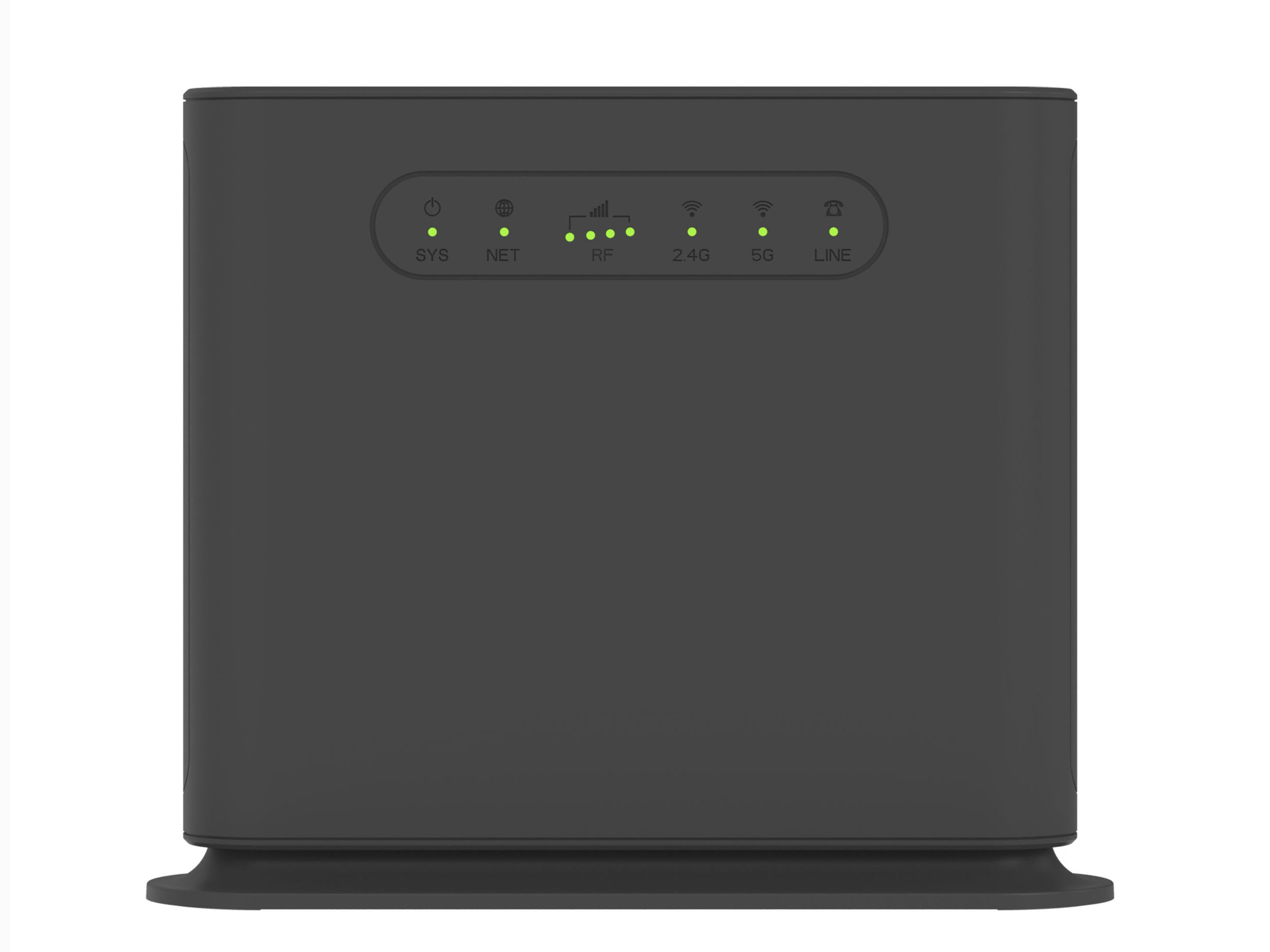

| LED Indicators | Power, SYS, Net, 2.4GHz WiFi, 5GHz, LINE, RF(5LEDs) |
| SIM Support | 1.8V/3.0V USIM 2FF |
| VoLTE Services (Optional) |
| Basic Call | AMR-NB & AMR-WB, Caller ID Name & Number display |
| Supplementary Call Features | Communication Forwarding |
| Barring of Incoming/Outgoing Calls |
| Communication Hold & Waiting |
| Ad-Hoc 3-Party Conference |
| Message Waiting Indication |
| Communication Diversion/Forward |
| DSP Processing | Adaptive Multi-Rate speech codec (AMR) |
| AMR wideband codec |
| Narrowband 8KHz & Wideband 16KHz Support |
| DTMF Tone Generation and Detection |
| Call Progress Tone Generation |
| Software Specifications |
| Networking Configuration | Router and L3 Bridge Operation Support |
| Built-in DHCP Server for LAN Devices |
| IPv4, and IPv6 DS-Lite Support for LTE |
| Multiple PDN Interface Support |
| Data Networking Features | VPN Pass-through support (PPTP, L2TP & IPsec) |
| Built-in L2TP & GRE Tunneling Client Support |
| DNS Proxy Support |
| Firewall & Access Control |
| DMZ and Virtual Server Support |
| IP and Port Forwarding Support |
| Application Firewall & Access Control |
| NTP Service Support |
| Device Management | CLI, Telnet, HTTP and HTTPS Management Interfaces |
| Standard Based TR-069 Management |
| FTP and HTTP OTA Firmware Upgrade |
| USIM and PLMN Locking Support |
| Device Factory Default Setting |
|
|
