Home > PRODUCT >Accessories>4G LTE Magnet Type Antenna

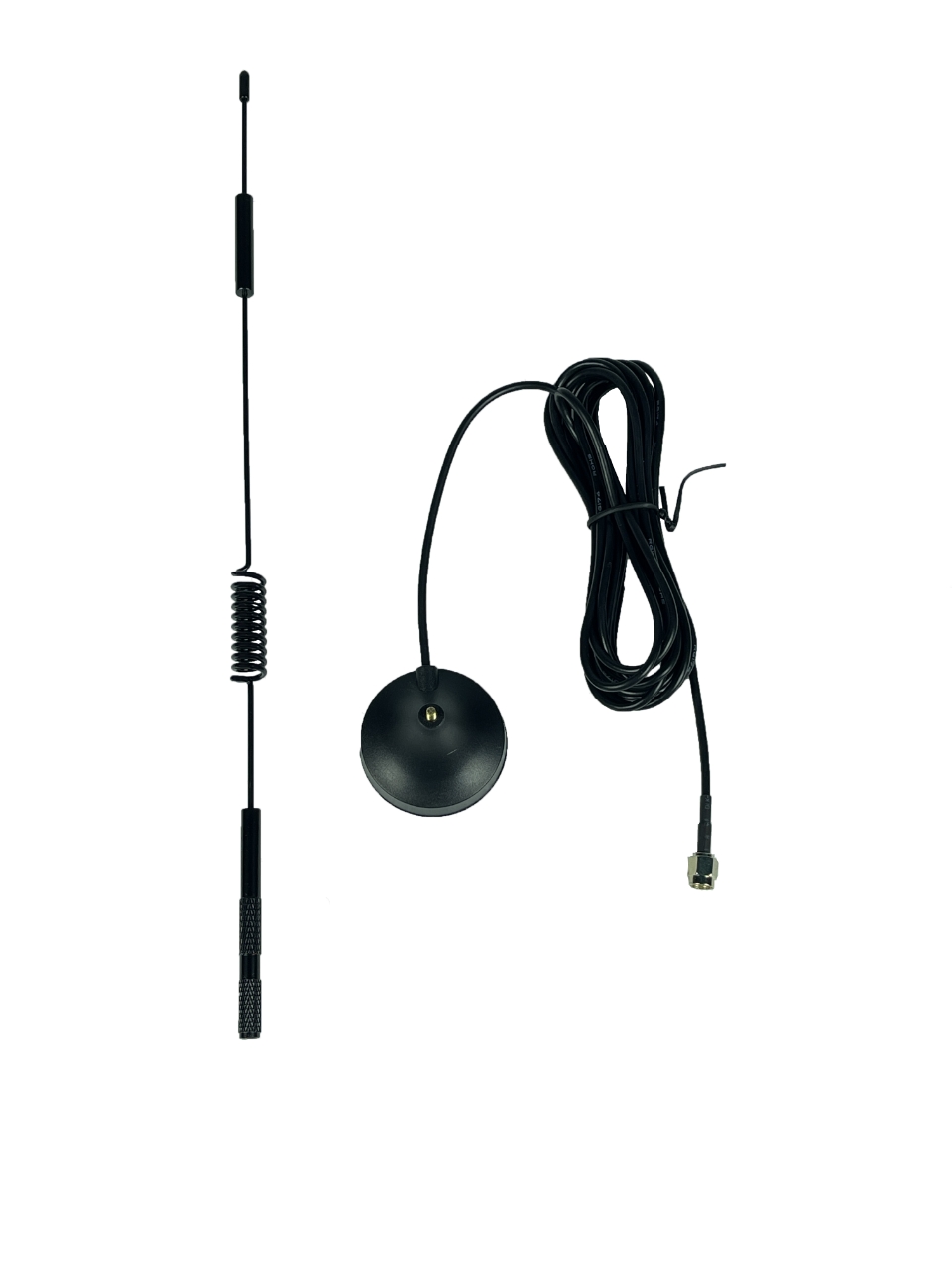

4G LTE Magnet Type Antenna

Online inquiry

Overview Specifications Packaging

Name	Magnet Type Antenna

ELECTRICATSPECTFICATIONS
Frenquency Range	690-960 MHz
	1710-2690 MHz
	5150-5825 MHz
Bandwidth	/
Input Impedance	50Ω
VSWR	≤3.0
Gain	5.0
Magnet suction	≥1.2 kg/f
SMA goal plating thickness	1.0um
Polarization	Vertical
Radiation direction	Omni-directional

MECHANICAL SPECTFICATIONS
Dimensions	359±5mm
Connector type	SMA straight head
Material of casing	ABS
Color of casing	Black
Length of cable	3000±30mm
Power capacity	50W
SMA hardness	≥HV80
Working temperature	-45℃-+85'C
Storage temperature	-45C-+85℃

Name	Magnet Type Antenna

ELECTRICATSPECTFICATIONS
Frenquency Range	690-960 MHz
	1710-2690 MHz
	5150-5825 MHz
Bandwidth	/
Input Impedance	50Ω
VSWR	≤3.0
Gain	5.0
Magnet suction	≥1.2 kg/f
SMA goal plating thickness	1.0um
Polarization	Vertical
Radiation direction	Omni-directional

MECHANICAL SPECTFICATIONS
Dimensions	359±5mm
Connector type	SMA straight head
Material of casing	ABS
Color of casing	Black
Length of cable	3000±30mm
Power capacity	50W
SMA hardness	≥HV80
Working temperature	-45℃-+85'C
Storage temperature	-45C-+85℃
